We’ve watched the Grail go through an identity crisis over two generations. Gen 1 had that polarizing and ugly double “Hover Bar” thing. Gen 2 walked it back to a normal cockpit but shipped with a laughably tight 42mm of tire clearance.

Neither fully committed to what gravel racing in 2026 looks or feels like. Or what the people want.

Gen 3 does.

Canyon just launched the third-generation Grail, and they fixed a few things we hated.

First is a new 57mm of tire clearance which equates to roughly 2.25 inche tires or what most consider for mountain biking. If you’ve raced any gravel, this is a huge improvement and you already know why that matters, because the courses are getting rockier, and the winning tire choices keep getting bigger. Plus, people love personalization and 57mm allows for that.

What’s New

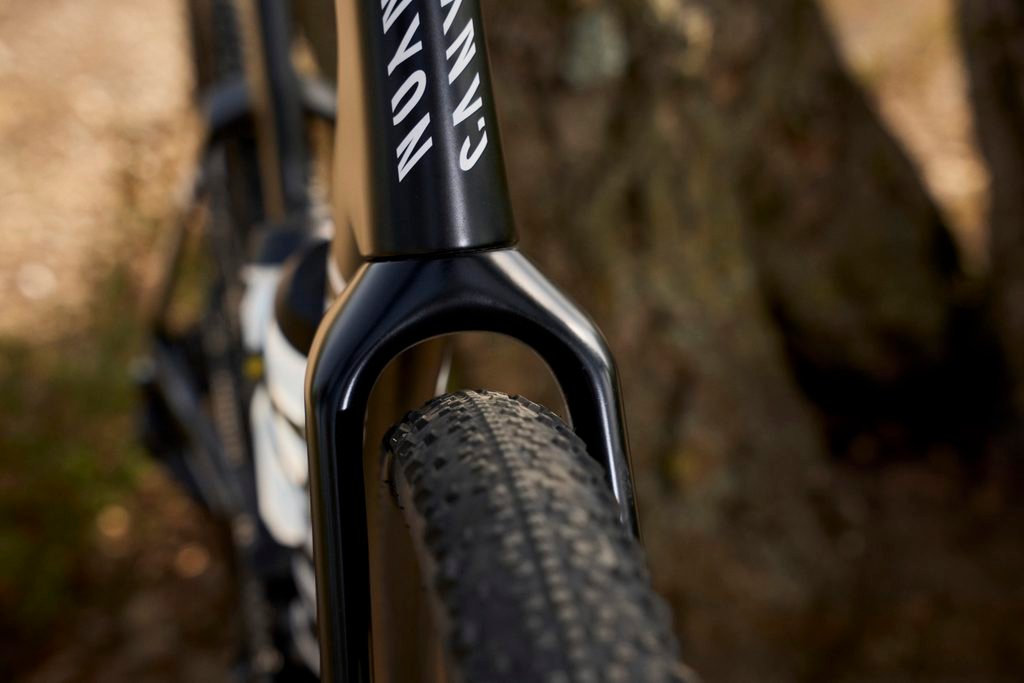

The tire clearance jump to 57mm is the biggest improvement and both the frame and fork clear it with room to spare. Canyon says there’s still 4mm of ISO clearance on top of that.

But Canyon didn’t just widen the frame and call it a day. They went back and reworked the aero around it, benchmarking the new bike at 35 km/h, which the company is calling realistic gravel-race pace. Canyon claims a 40mm-tire setup is 5.7 watts faster than the old bike at that speed, and that it’s dragging less than a Cervélo Áspero-5 or a Factor Ostro Gravel. We’re always skeptical of watts and numbers, especially when it comes to Age Group racing. Cool. But who really cares. Yes, its great to hear but does it matter?

The fit got racier, too. Stack dropped 15mm across the board (a Medium now sits at 575mm), while reach stayed put at 411mm and the wheelbase grew 10mm to make room for the bigger rubber. The head tube angle (71.5°) and trail (69mm) didn’t move because Canyon says they were happy with how the old bike handled and didn’t want to mess with it. Shorter stock stems (80mm on a Medium) pull the whole position together into something more aggressive.

If you found the old Grail a little too upright for race day or long races, this is the fix customers asked for.

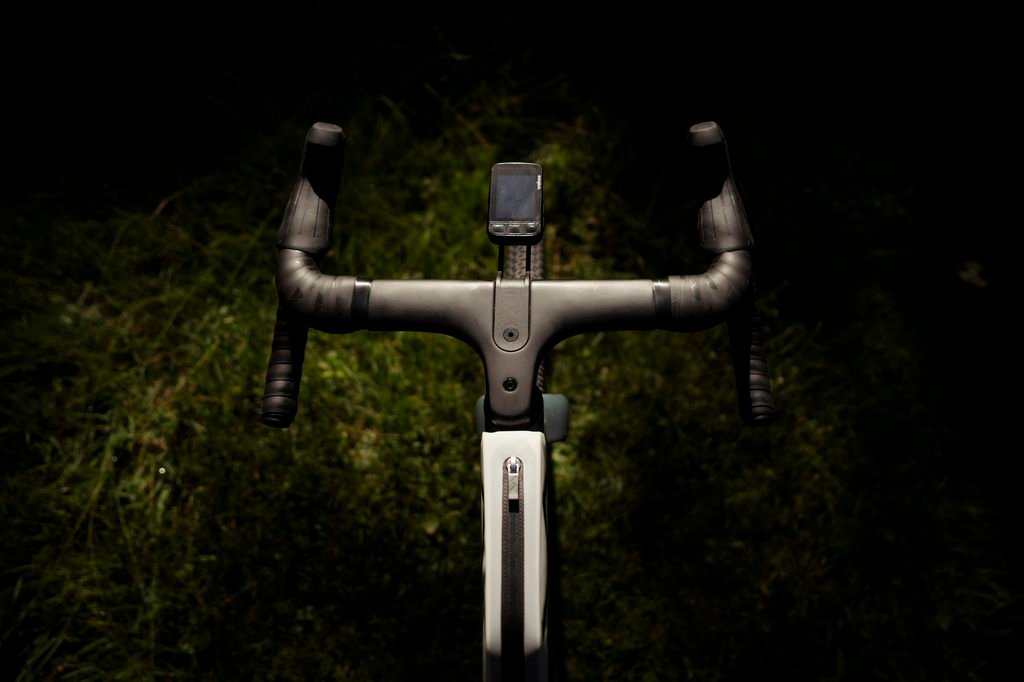

The cockpit and seatpost got an overhaul as well. The CFR and CF SLX tiers now run Canyon’s PACE bar system, which adjusts width from 370 to 420mm and height by 20mm, and the stock Control drops can be swapped out if they don’t fit you. There’s also a new VCLS aero seatpost that Canyon claims delivers 25% more compliance than a rigid post, with consistent deflection no matter how much post you’ve got exposed. Add the Gear Groove cockpit interface for lights and computers, plus bolt-on aero extensions that turn the bike into something built for ultra-distance efforts, and this frame is clearly trying to sit in the middle as a bike that can be both a crit-speed racer and a long-haul ultra machine.

The funny thing about this bike? As much as everyone goes lighter, this is heavier and Canyon hasn’t shied away from it. The CFR frame comes in at 989g, up from the previous generation.

More tire clearance and a reworked aero profile cost some grams.

Canyon’s bet is that the speed gained from rolling bigger rubber and cutting drag outweighs a slightly heavier frame, and like we said about the aero gains, a slightly heavier bike isn’t going to kill people from buying or not buying this bike.

The Full Lineup

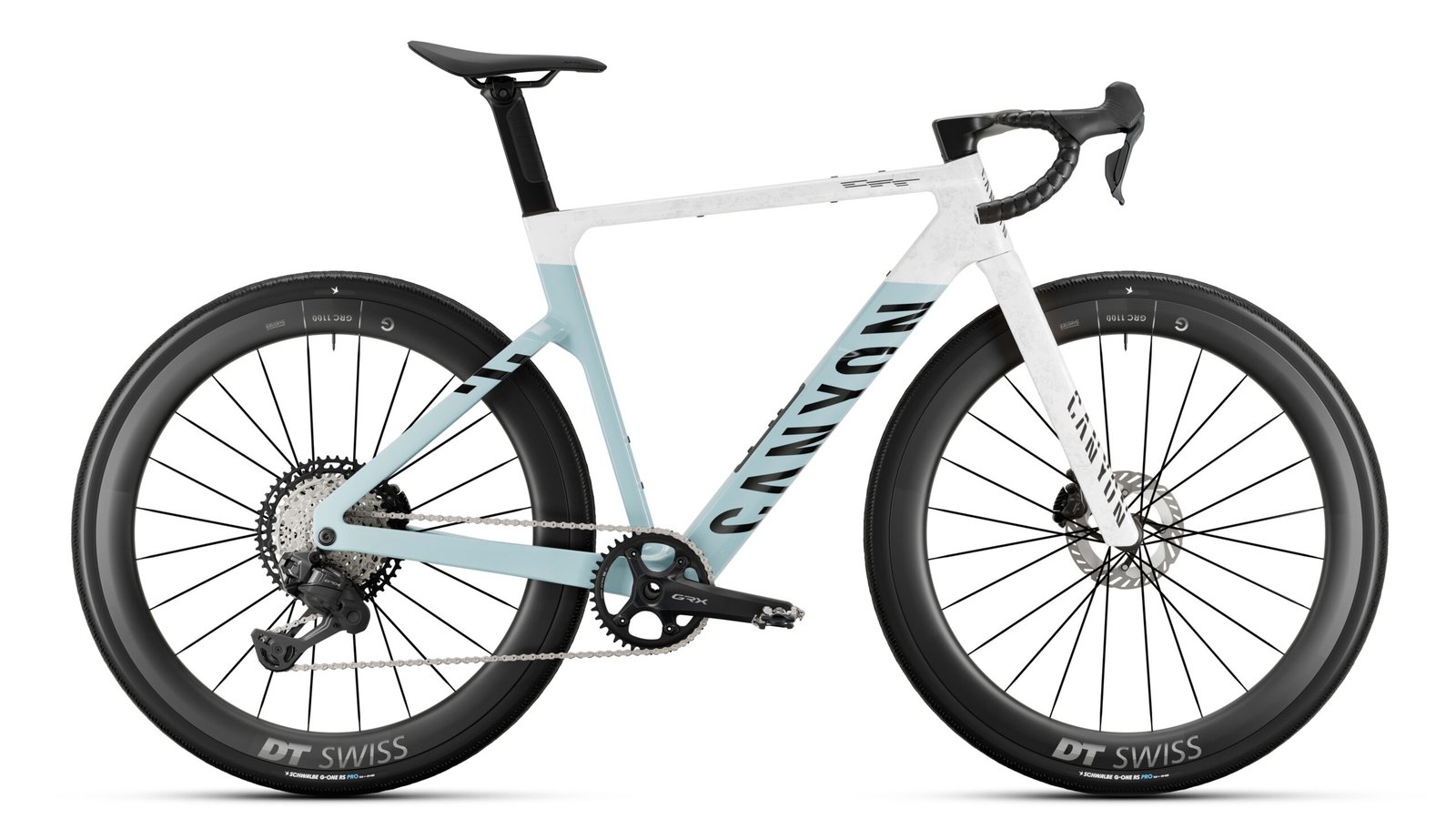

• Grail CFR. This is the flagship bike and the CFR AXS runs SRAM RED XPLR AXS on DT Swiss GRC 1100 wheels at a claimed 7.9kg. The CFR Di2 runs Shimano’s GRX Di2 800-series on the same wheelset. European riders get MyCanyon customization at this tier — custom paint, alternate wheels (including Zipp 303 XPLR SW), stem length, bar flare, crank length, and saddle choice. Price comes in at $8,999.

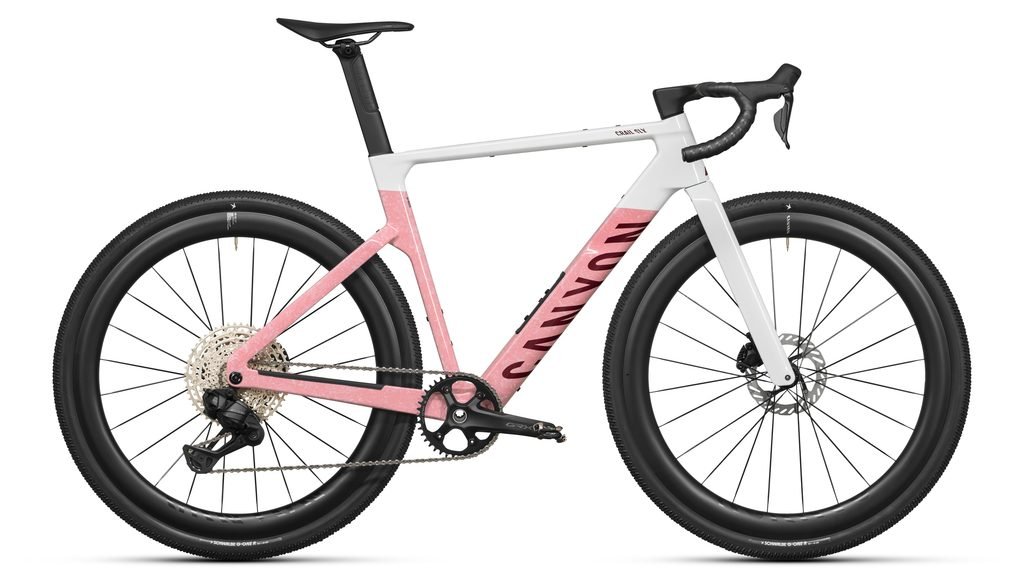

• Grail CF SLX. This is the privateer’s bike and the CF SLX 8 AXS pairs full SRAM Force XPLR AXS with DT Swiss GRC 1400 wheels; CF SLX 7 Di2 runs Shimano GRX Di2 700-series on Canyon’s new GR 50 CF carbon wheels with 45mm Schwalbe G-One R tires, at a claimed 9.56kg for $4,999.
• Grail CF. This is the entry point into the platform, with SRAM Rival XPLR AXS and the same GR 50 CF wheels, starting at $3,499. We have SRAM Rival on our Lauf gravel bike and zero complaints. This is a great place to start.

That new GR 50 CF wheelset runs at 50mm depth, 27mm internal width, and is built to run 35–60mm tires, and priced at €999 aftermarket if you want to retrofit them.

Canyon has been testing these for a while now and put Rosa Klöser on the CFR at The Traka 360 for its competitive debut, and she won. I mean, can you get a better marketing opportunity than that? A pro win on its debut journey? sure.

The bottom line is that the third-gen Grail finally looks like a bike built around how gravel racing actually goes down. No weird cockpit, bigger tire clearance, built for higher speeds, and on and on. Whether the aero and weight tradeoffs hold up is anyones guess but at the end of the day, Canyon finally seemed to figure it out with Gen 3.
